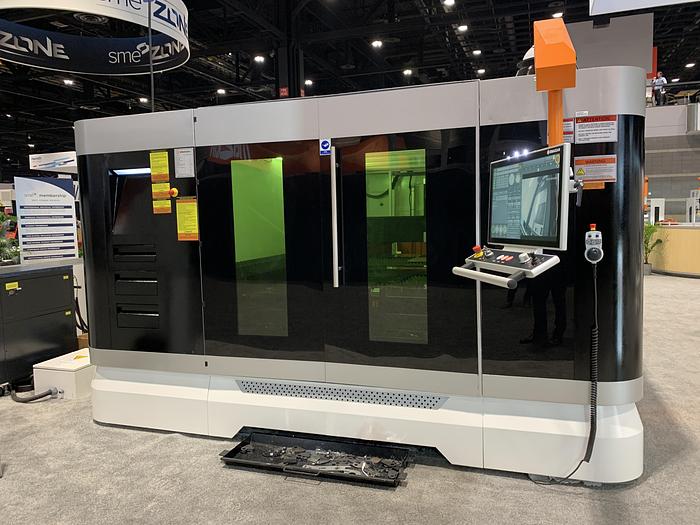

6000 Watt / 6'x12' Ermak Gen 5 Fiber Optic Laser
6000 Watt / 6'x12' Ermak Gen 5 Fiber Optic Laser
Location:United States
orCall (714) 545-0940
Equipped With

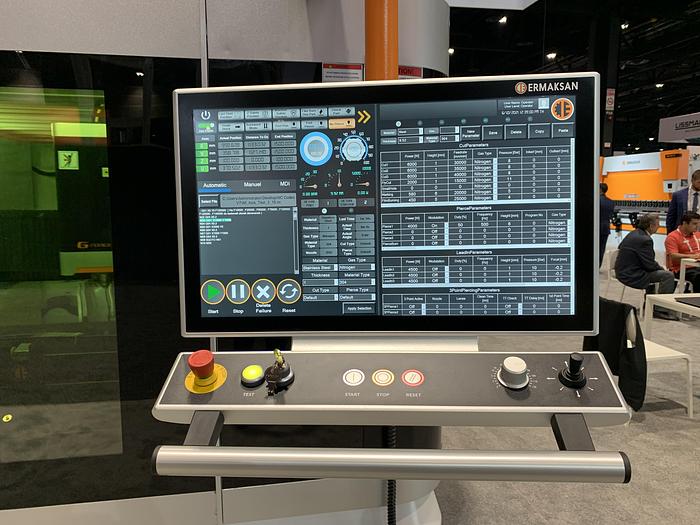

Beckhoff C3921 Touch Screen Controller w/15" 1024x768 Display
IPG 6,000 Watt Fiber Optic Resonator Precitec Procutter Cutting Head w/ Auto Focusing 2.5 G High Speed Acceleration Proportional Gas & Piping System Gas & Air Control Shuttle Table Conveyor Suction System Working Coordinate Systems Machine & Operator Safety System Chiller Dust Collector Lantec CAD/CAM and Nesting Software Laser Working Area - Electric Panel Illumination Lay-out Floor Plates *Price Includes Installation and [1] Week of Operating, Programming, Panel and Maintenance Training w/ [1] Ermak Service Tech
Specifications
| Manufacturer | Ermaksan |
| Model | GEN5/6K 72-144 |
| Year | 2022 |
| Condition | New |
| Stock Number | GEN5/6K 72-144 |
| Resonator Wattage | 6,000 Watts |
| Table Size | 6.5'x13' |
| Power Range | 10 - 105% |
| Pulse Frequency Range | 5kHz |
| Max. Weight | 4672# |
| Machine Axes | 4-Axes (X,Y,Z,U) |
| Axial Movements X, U Axes | 160" |
| Axial Movements Y-Axis | 80" |
| Axial Movements Z-Axis | 5.9" |
| Accelerations X, U Axes | 2.5G |
| Accelerations Y-Axis | 2.5G |
| Accelerations Z-Axis | 2.5G |
| Max. Axes Velocities Simultaneous | 5551 IPM |
| Max. Axes Velocities X, Y Single Axis | 3937 IPM |
| Positioning Accuracy | +/- .001 |
| Repetition Accuracy | +/- .0006 |
| Shuttle Table | [2] @ 35 sec |
| Assist Gas Mild Stee | Oxygen (.5 - 6 Bar) |
| Assist Gas Stainless Steel | Nitrogen (.5 - 25 Bar) |
| Assist Gas Aluminum | Dry Air or Nitrogen (.5 - 25) |
| Cutting Head | Precitec Procutter |
| Controller | Beckhoff C3921 |
| CAD/CAM Software | Lantek Expert Cut |
| Network Connection | Ethernet |
