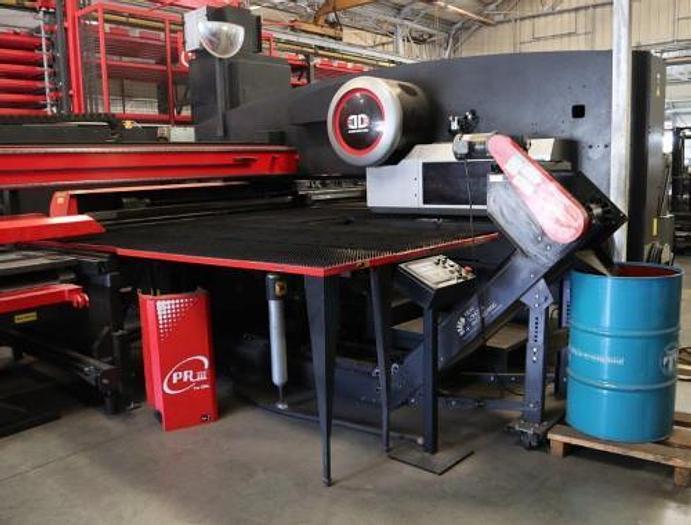

2012 - 33 Ton / 4000 Watt Amada EMLK-3610 Laser/Turret Punch Combo
No longer available
2012 - 33 Ton / 4000 Watt Amada EMLK-3610 Laser/Turret Punch Combo
Location:United States
Equipped With
Equipped with:
FANUC AMCF-F CNC CONTROL
AC SERVO DRIVEN RAM
FANUC AF 4000E CO2 LASER RESONATOR
DIAGNOSTIC SYSTEM
INTELLIGENT TURRET SET UP
JOB SCHEDULER
STRIPPING SENSOR
AUTOMATIC REPOSITIONING
SHEET JAM DETECTOR
QUICK CHANGE LASER HEAD
POWER VACUUM DIE
TRAP DOOR
METRIC OR INCH DIMENSIONAL PROGRAMMING
PRECISION GROUND RECIRCULATING BALL LEAD SCREWS FOR X AND Y AXIS
CRASH PROOF CLAMP SENSORS
HARDENED AND GROUND TURRET INDEX PINS AND BUSHINGS
SAFETY INTERLOCKS AND OVERRUN PROTECTORS

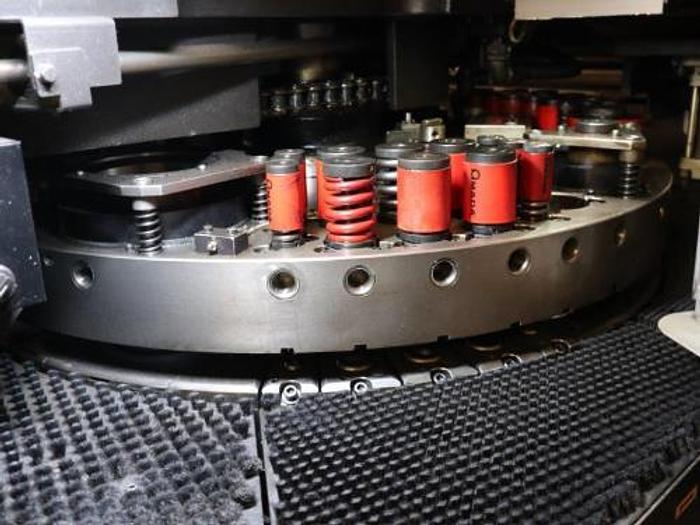

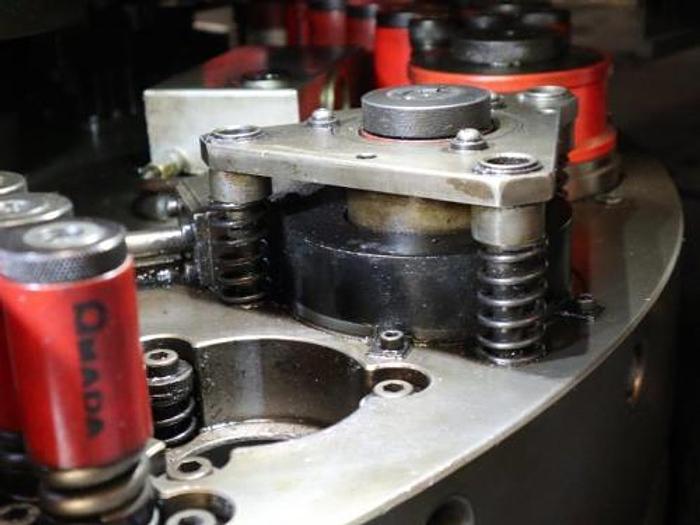

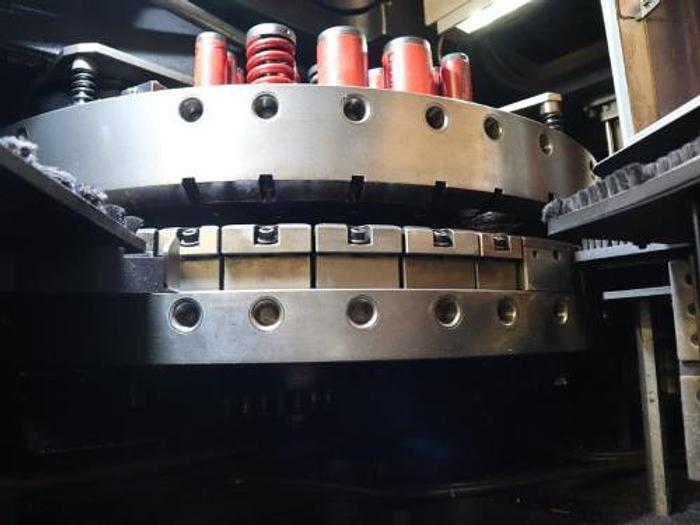

58 STATION THICK TURRET

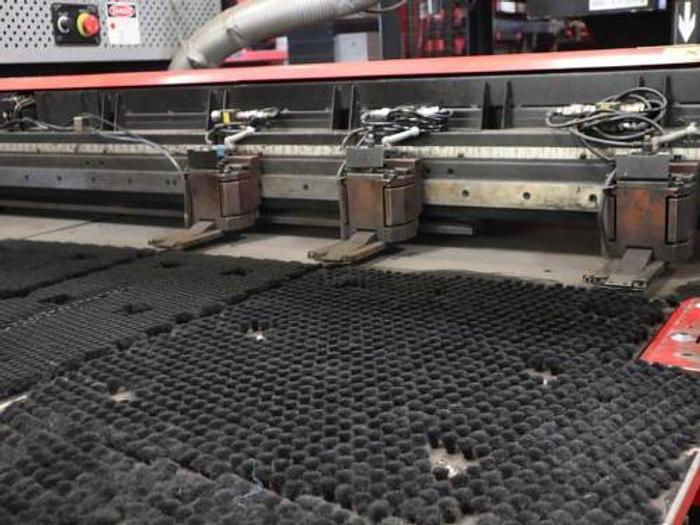

BRUSH TABLE
Specifications
| Manufacturer | Amada |
| Model | EMLK-3610 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 12617 |
| Capacity | 33 Tons |
| Laser Resonator | 4,000 Watt |
| Maximum Sheet Size | 120" |
| Turret Configuration | 58 Stations w/(4) A/I |
| Y-Axis Travel | 60" |
| X-Axis Travel | 100" |
| Max Punched Hole Size | 4.5" |
| X/Y Hit 1" Centers | 400 HPM |
| X/Y Hit Rate Marking | 1800 HPM |
| Max. Cutting Speed (Laser) | 787 IPM |
| Feed Clearance | .984" |
| Linear Positioning Speed | X= 3937 IPM, Y= 3150 IPM |
| Trap Door Size | 17" x 60" |
| Approx. Machine Weight | 66,139 lbs. |
