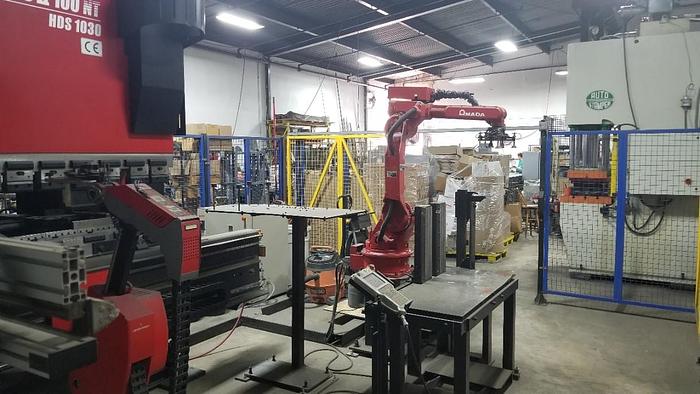

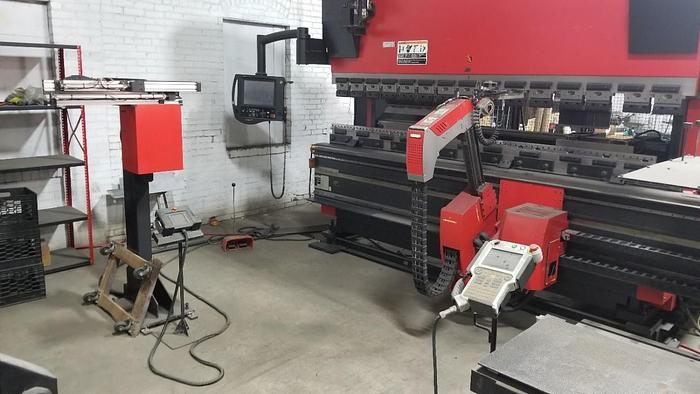

2007 - 110 Ton Amada Astro II 100NT/HDS-1030NT Hybrid Press Brake
2007 - 110 Ton Amada Astro II 100NT/HDS-1030NT Hybrid Press Brake
Location:New York, NY
orCall (714) 545-0940
Equipped With
Equipped with:
Amada AMNC/PC Control
D1D2 Ram Depth
L1L2 Backgauge
Z Vertical Finger Position
Y1 & Y2 Horizontal Finger Movement
CC Bed Crowning
25 Bends per Program
Full Set of Punch Holders
Specifications
| Manufacturer | Amada |
| Model | Astro II 100NT/HDS-1030NT |
| Year | 2007 |
| Condition | Used |
| Stock Number | 12629 |
| Capacity | 110 Tons |
| Overall Bending Length | 118.11" |
| Distance Between Frames | 106.3" |
| Length of Stroke | 7.87" |
| Throat Depth | 13.5" |
| Approach Speed | 7.87" /sec |
| Bending Speed | .0787" /sec |
| Open Height | 19.7" |
| Robot Arm Axes | 5 |
| Robot Arm Payload | 44 lbs (including grippers) |
| Dimensions | 14' x 8' x 9'H |
| Weight | 20,000 lbs. |
