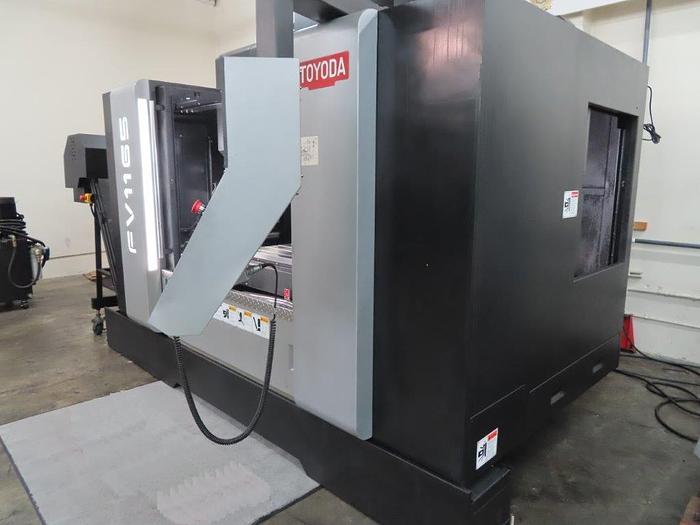

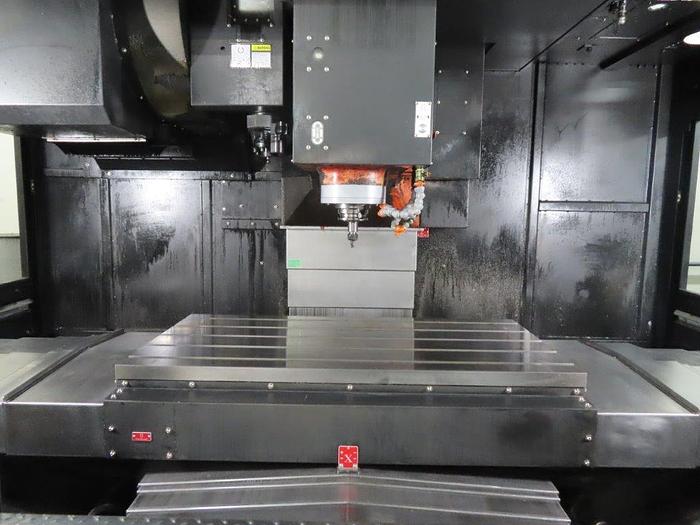

2018 - Toyoda FV-1165 Vertical Machining Center

2018 - Toyoda FV-1165 Vertical Machining Center

Location:California

orCall (714) 545-0940

Equipped With

Equipped with;

·         FANUC OiMF CONTROL, 10.4” LCD with Data Server + 2GB CF Card & USB

·         MPG HANDWHEEL

·         RIGID TAPPING & HELICAL INTERPOLATION

·         AICC 200 BLOCK LOOK AHEAD

·         4TH AXIS READY (Pre-Wire)

·         FLOOD COOLANT

·         COOLANT THRU SPINDLE at 1000 PSI

·         2 RANGE GEARED HEAD

·         TWO CHIP AUGERS – CHIP CONVEYOR & BUCKET

·         OIL SKIMMER

·         SPINDLE CHILLER

·         MISTAWAY Coolant oil mist collector, variable speed control.

·         SET of Toyoda and Fanuc Manuals

·         HOURS:  Power on: 13,432 / Run: 3918 / Cutting: 2461



Specifications

ManufacturerToyoda
ModelFV-1165
Year2018
ConditionUsed
Stock Number12685
X-Axis Travel43.3"
Y-Axis Travel25.6"
Z-Axis Travel23.6"
Table Size51.2" x 25.6"
Max. Table Load2425 lbs.
X & Y Axis Rapid Traverse Rates1181 IPM
Spindle TaperBT #50
Spindle Speed6000 RPM (2 Speed Gear)
Spindle HP25 HP
Tool Storage Capacity30
Power220V / 3Ph / 35KVA / 60Hz
Approx. Machine Weight15,840 lbs.
Dimensions (approx)170 x 160 x 116"H
