1/4" x 4' GMC HBR-0425 3-Roll Hydraulic Plate Rolling Machine
1/4" x 4' GMC HBR-0425 3-Roll Hydraulic Plate Rolling Machine
Location:Santa Ana, CA
orCall (714) 545-0940
Equipped With
Standard Included Equipment
- LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Removable safety foot pedal and tool box
- Cone attachment (to make cone parts)
- (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
Standard Features
- ISO 9001 certified
- All three rollers are driven
- All three rollers are hardened, up to 50-52 HRC

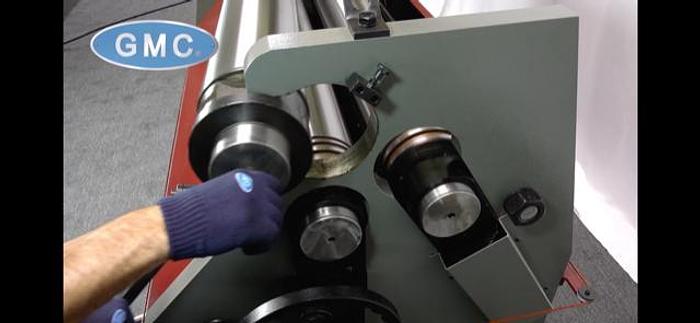

- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump

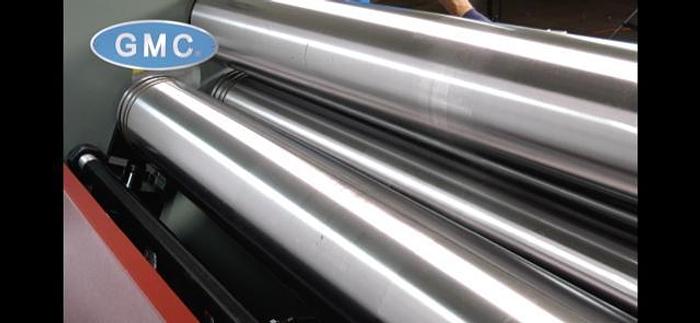

- All three rolls are made of high grade alloy steel
- All rolls run forward and reverse
- Safety type foot pedal control
- Overload protection and disconnect switch
- One year industrial warranty for parts
Specifications
| Manufacturer | GMC Machine Tools |
| Model | HBR-0425 |
| Condition | New |
| Stock Number | HBR-0425 |
| Product | Plate Roll, Hydraulic |
| Roll Length | 51" |
| Capacity | 1/4" (Mild Steel), 3/16" (Stainless Steel) |
| Minimum Roll Diameter | 7" |
| Number of Rolls | 3 |
| Rolls Diameter | 6" |
| Pre-Bend | 0.18" |
| Rolls Speed | 5 RPM |
| Rolls Opening | 2 1/2" |
| Oil Tank Capacity | 12 Gallons (45L) |
| Main Motor | 3 HP |
| Electrical | 3 phase, 220V or 440V |
| Machine Dimensions | 87" x 36" x 53" |
| Machine Weight | 4650 lbs. |
