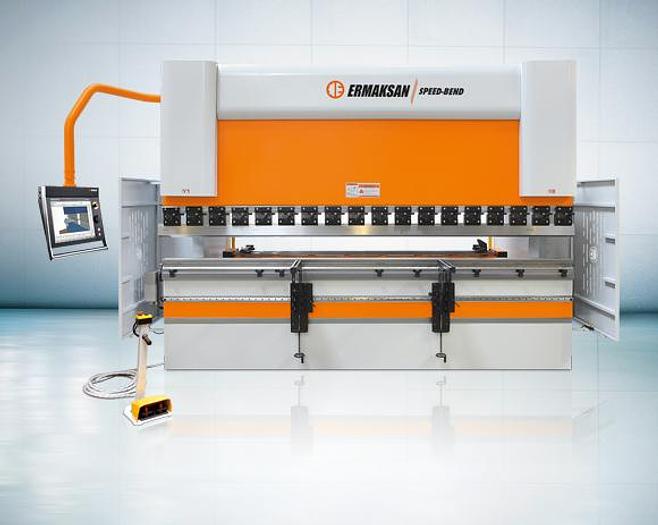

242 Ton x 12.3' Ermak Speed Bend CNC Press Brake
No longer available
242 Ton x 12.3' Ermak Speed Bend CNC Press Brake
Location:Anaheim, CA
Equipped With
Delem 66-T CNC Touch Control AKAS II Laser Safety Guard Dual Voltage (230/460) Top Tool 4 Way Bottom Die Y1, Y2, X, Z1, Z2 Axes CNC Crowning Quick Release Universal Punch holders Sheet Support Arms Pedestal w/Foot Pedal Additional Rod on 4V Die
Specifications
| Manufacturer | Ermaksan |
| Model | Speed Bend |
| Year | 2019 |
| Condition | New |
| Serial Number | 27030 |
| Stock Number | 3480 |
| Capacity | 242 Tons |
| Overal Bending Length | 148" |
| Distance Between Columns | 128" |
| Throat | 16.1" |
| Daylight | 21.7" |
| Stroke | 10.8" |
| Approach Speed | 7.09 IPS |
| Bending Speed | .39 IPS |
| Return Speed | 7.28 IPS |
| Back Gauge Travel | 31.5" |
| Back Gauge Speed (X-Axis) | 19.69 IPS |
| R-Axis Travel | 9.84" |
| R-Axis Speed | 13.78 IPS |
| Electical | 230-460V, 60Hz, 3 PH |
| Weight | 27,900 lbs. |
| Dimensions | 201 x 77 x 115"H |
