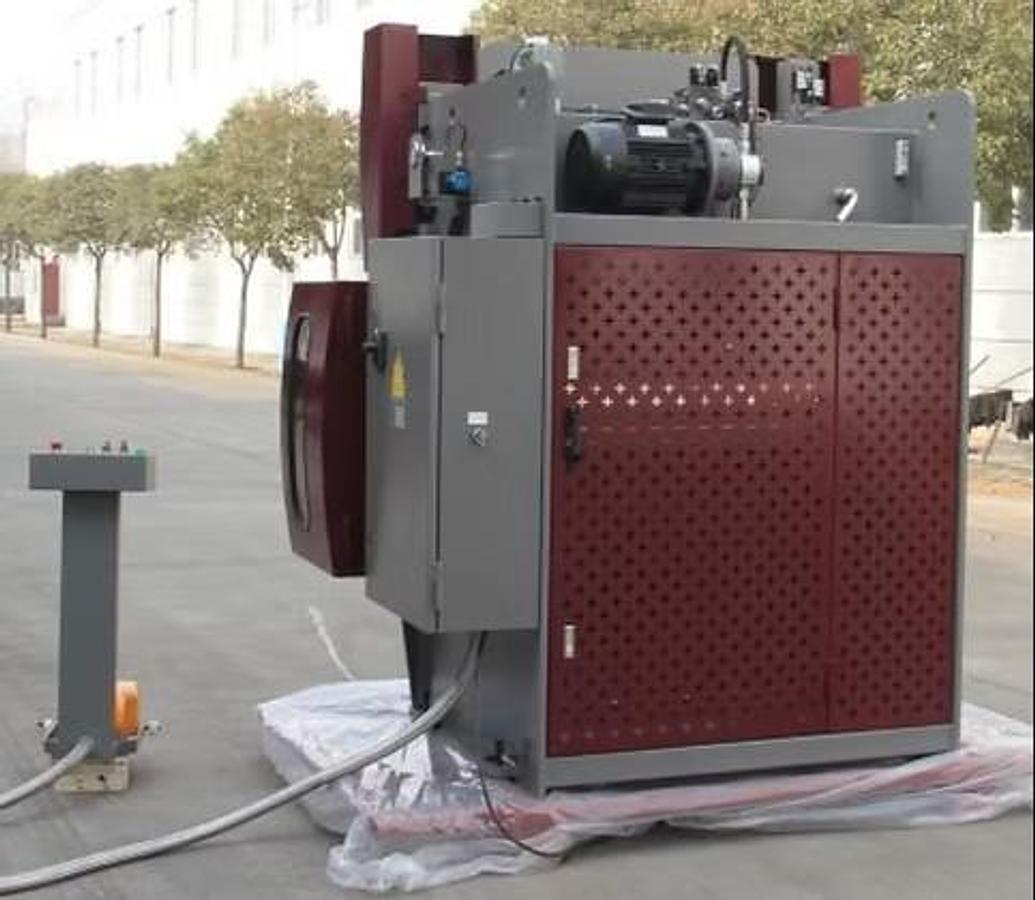

33 Ton x 5' GMC HPB-3305 CNC Press Brake

33 Ton x 5' GMC HPB-3305 CNC Press Brake

Location:Santa Ana, CA

orCall (714) 545-0940

Equipped With

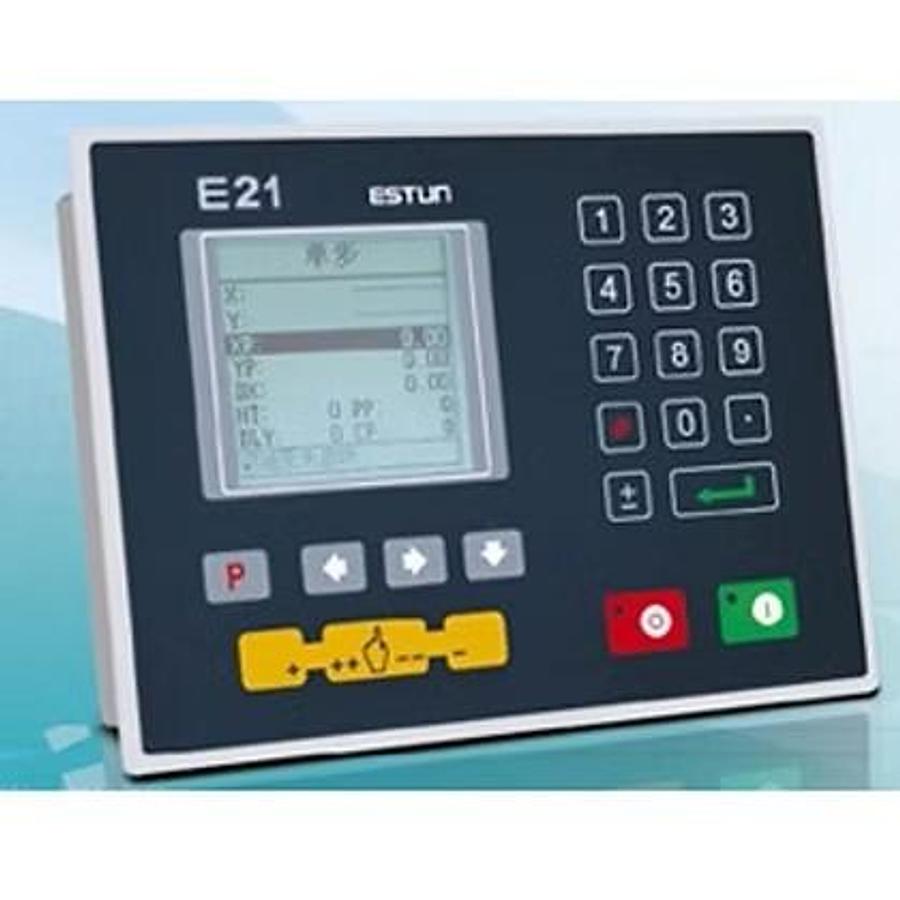

  •  Estun E21, 2 Axis Controller
  • ( 2 )  24” front support arms

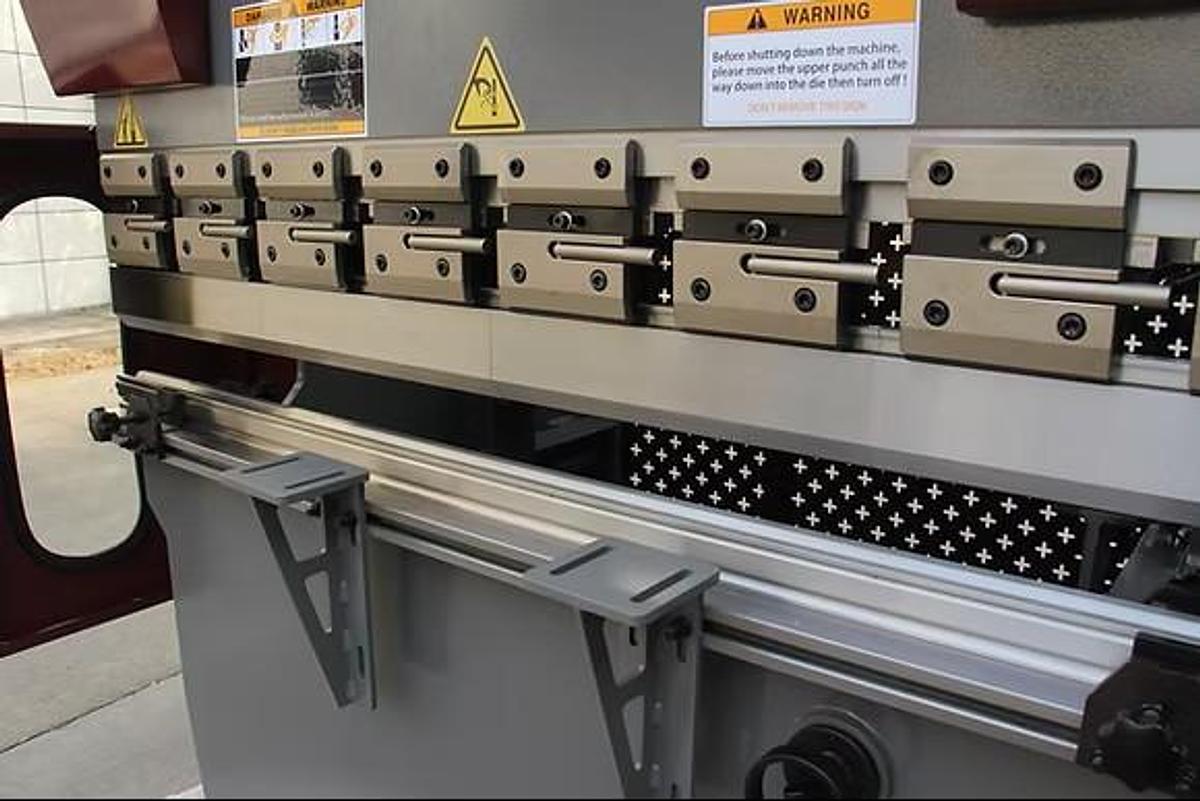

  • Quick release segmented ( American Style Tooling ) punch holder
  • Full Length Gooseneck Punch HRC 50
  • Full Length Vee Die with 6 assorted sizes  HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
  • Lntech Light Curtain System
  • Side and Back Safety Fence

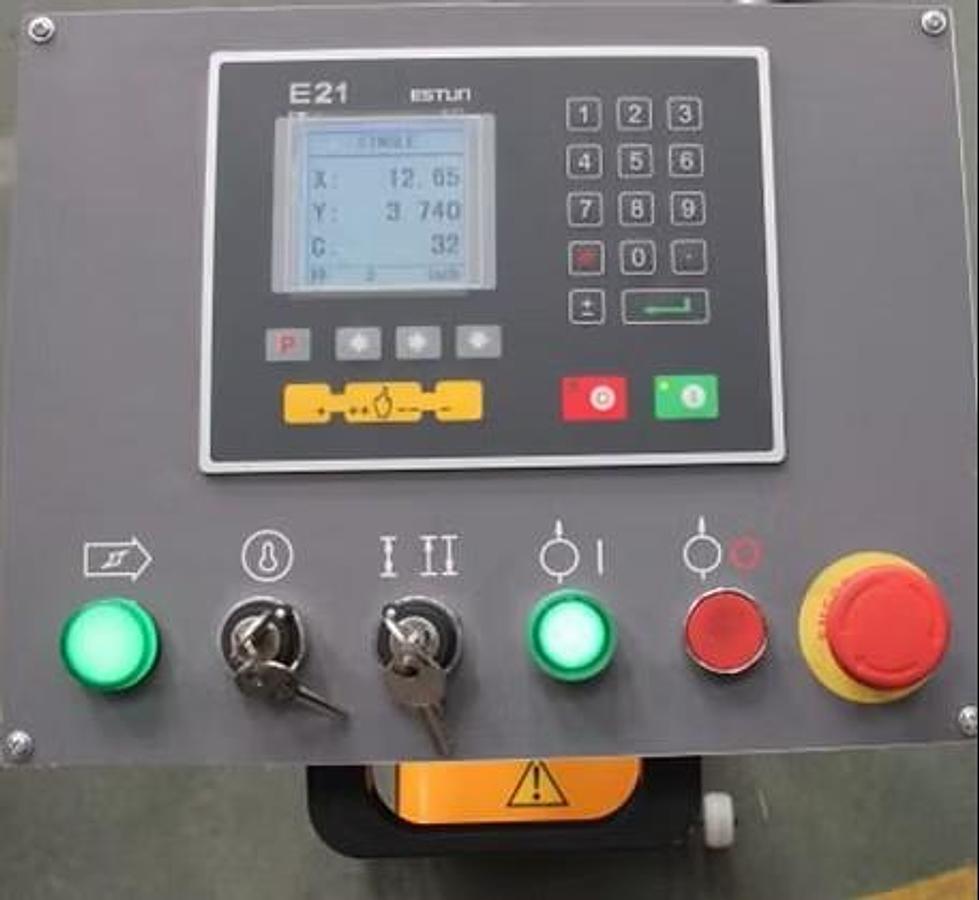

  • Movable Foot Pedal with E21 screen, control panel ,and E-stop
  • OSHA safety standard


Specifications

ManufacturerGMC Machine Tools
ModelHPB-3305CNC
ConditionNew
ProductPress Brake
Capacity33 Tons
Max Bending Length63"
Distance Between Housings51"
Stroke4"
Table Width6"
Distance Between Table and Ram13.25"
Throat8"
Back Gauge Distance21"
Back Gauge Repeatability.008"
X-Axis Repeatability.008"
Main Motor7.5 HP, 3 Phase, 30 Amp, 220V
Hydraulic Oil20 Gallons
Dimensions (approx)91" x 56" x 87"
Weight (approx)5,350 Lbs.
