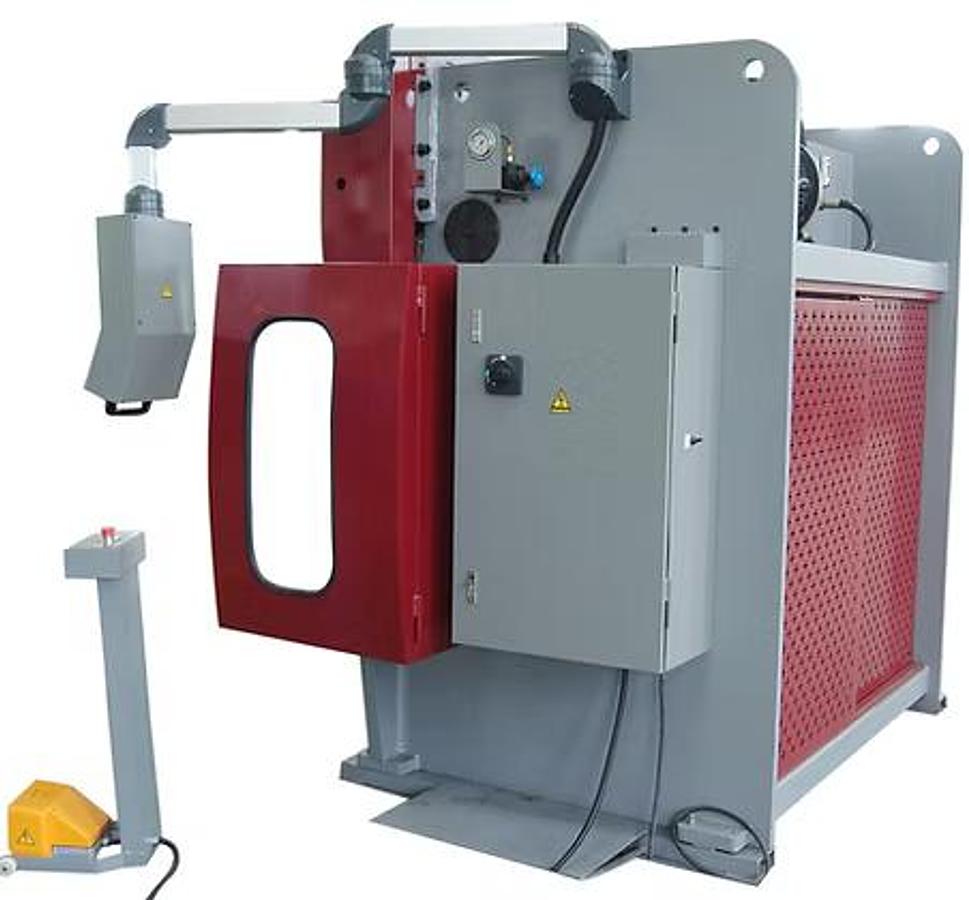

70 Ton x 6' GMC HPB-7006 CNC Press Brake

70 Ton x 6' GMC HPB-7006 CNC Press Brake

Location:Santa Ana, CA

orCall (714) 545-0940

Equipped With

  • ESA (Italy) Model 625, 2 Axis CNC Controller
  • (2) 24” front support arms, Quick Release for easy positioning

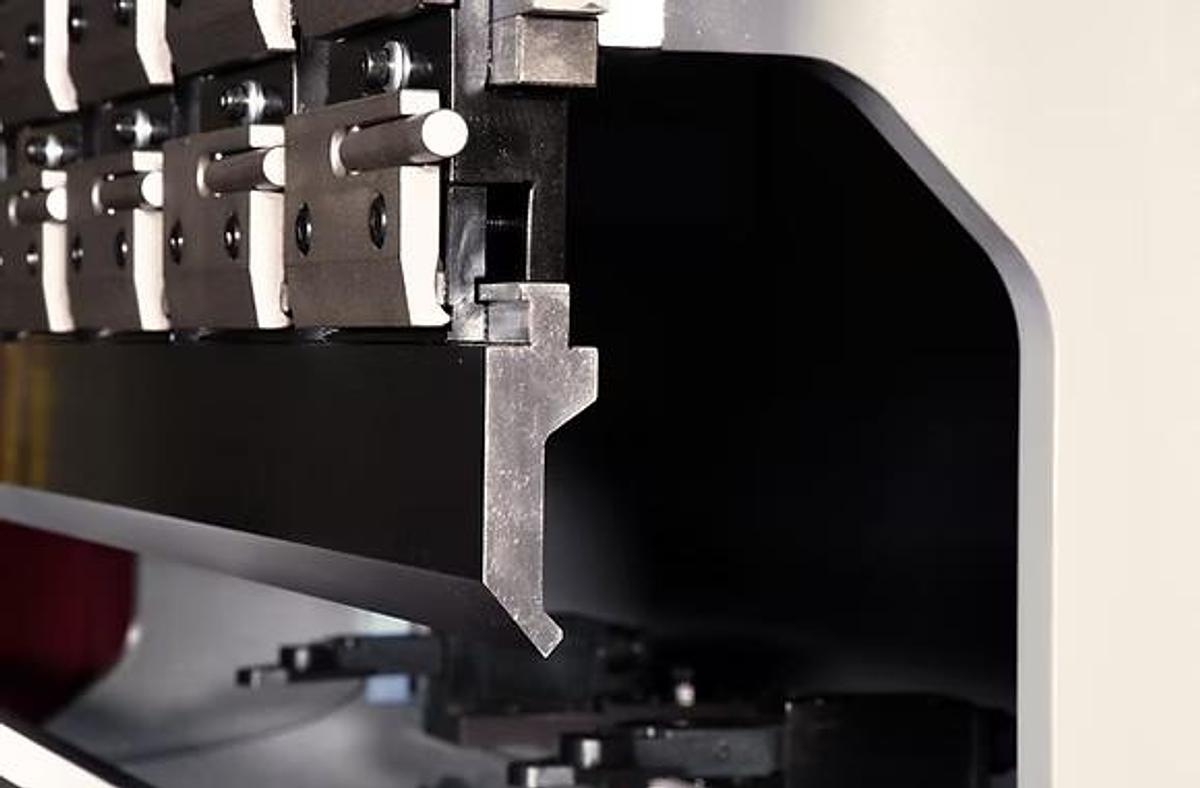

  • Quick release segmented (American Style Tooling) punch holder
  • Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)

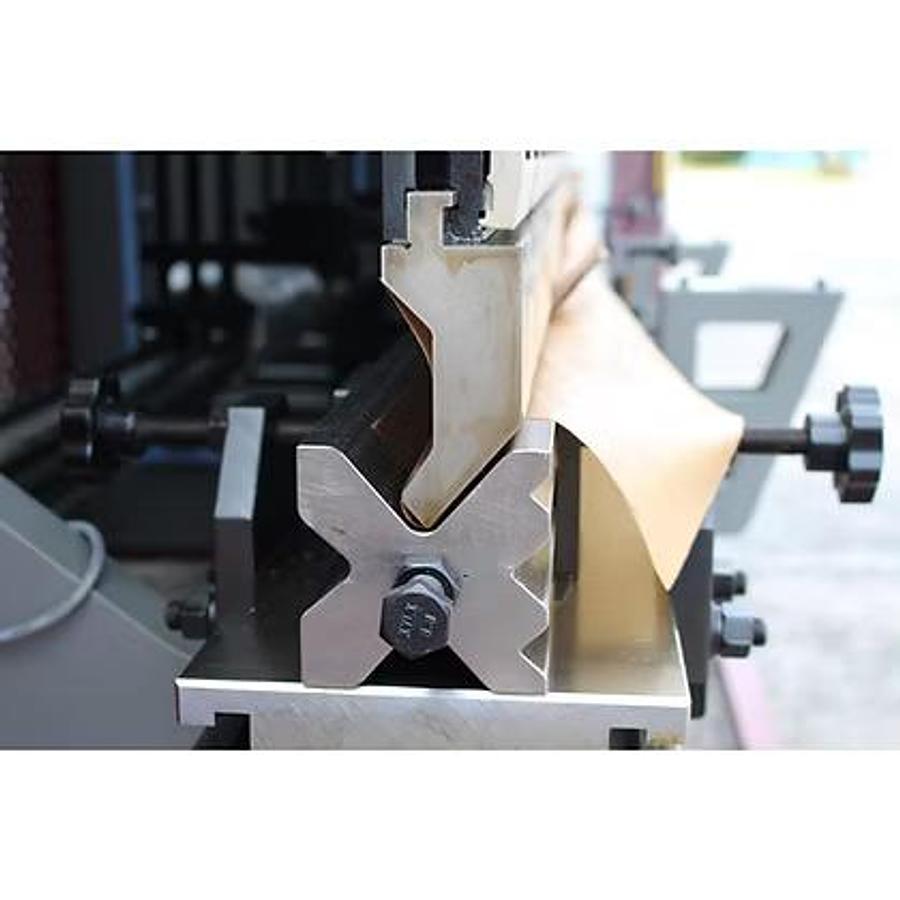

  • Full Length Vee Die with 6 assorted sizes HRC 50
  • Lntech Light Curtain System
  • Side and Back Safety Fence
  • Movable Foot Pedal with Estop
  • OSHA safety standard


Specifications

ManufacturerGMC Machine Tools
ModelHPB-7006CNC
ConditionNew
ProductPress Brake
Capacity70 Tons
Max Bending Length80"
Distance Between Housings63"
Stroke6"
Table Width6"
Distance Between Table and Ram15.25"
Throat10"
Back Gauge Distance24"
Back Gauge Repeatability.0039"
X-Axis Repeatability.0039"
Main Motor7.5 HP, 3 Phase, 30 Amp, 220V
Hydraulic Oil52 Gallons
Dimensions (approx)103" x 63" x 87"
Weight (approx)8,650 Lbs.
