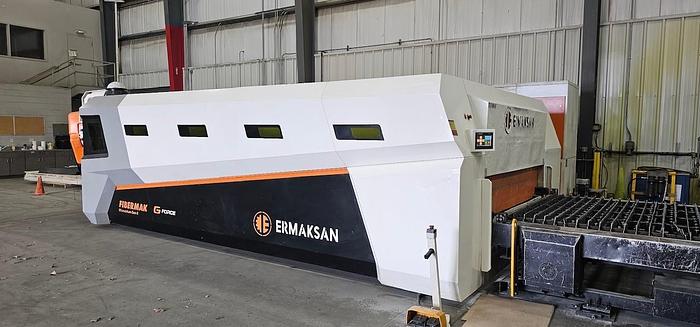

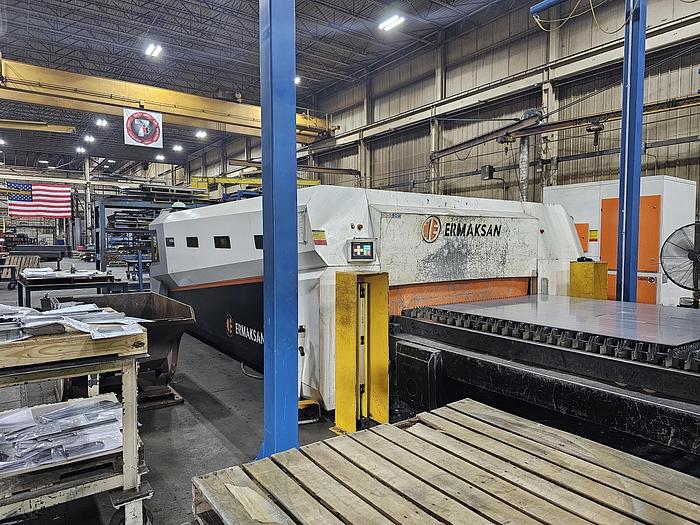

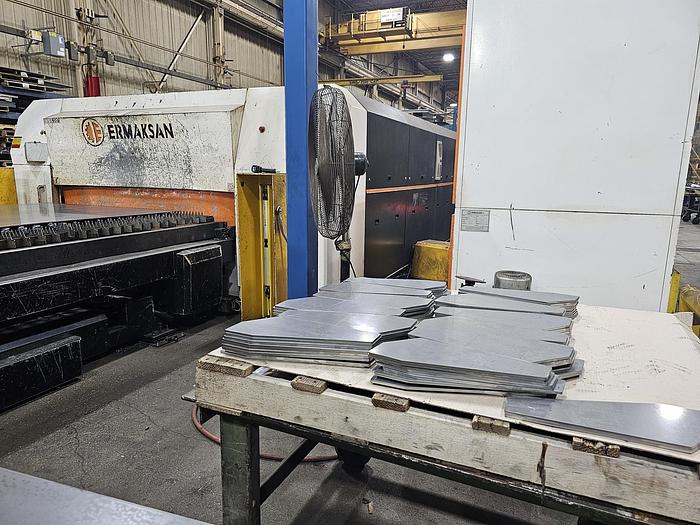

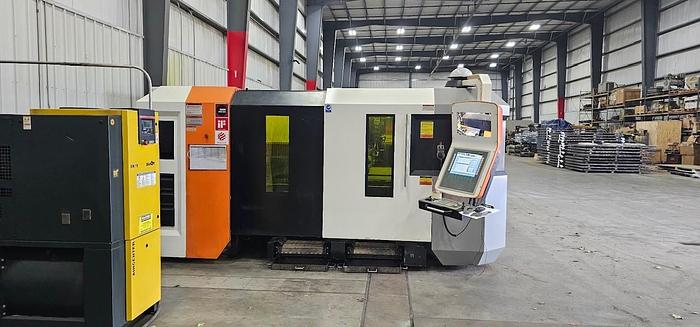

2018 - 6000 Watt Ermak Gen-3 4020 CNC Fiber Laser

2018 - 6000 Watt Ermak Gen-3 4020 CNC Fiber Laser

Location:United States

orCall (714) 545-0940

Equipped With

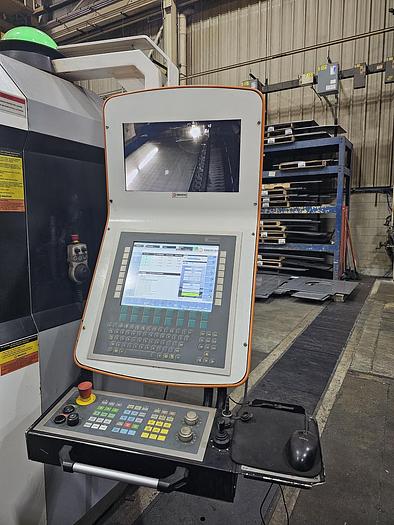

Beckhoff Control

Precitec Procutter Cutting Head w/Auto Focus

2.5G Acceleration

4 Axes (X,Y,Z,U)

Shuttle Table

Conveyor

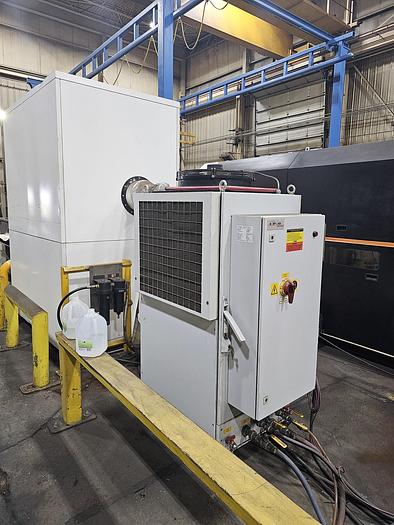

Chiller

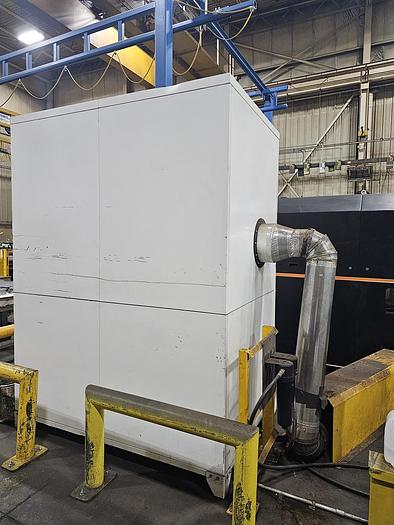

Dust Collector

Specifications

ManufacturerErmaksan
ModelGen-3
Year2018
ConditionUsed
Stock Number12852

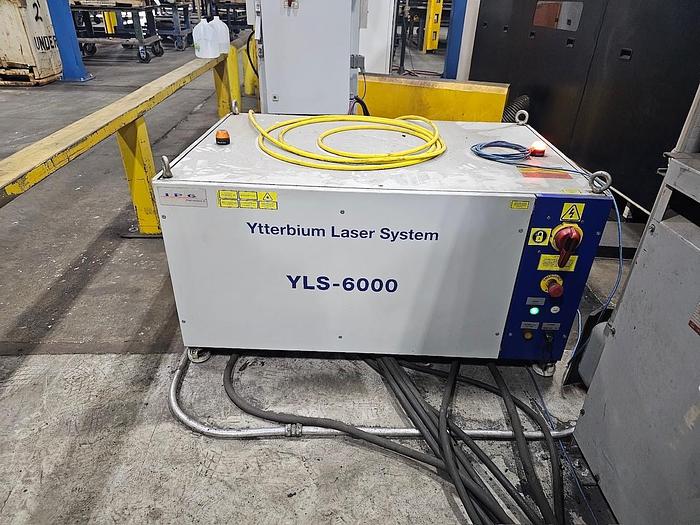

Resonator Wattage6,000 Watts
Max Sheet Size157"L x 79"W
Max Sheet Weight5511 lbs.
Power Range10 - 105%
Pulse Frequency Range5kHz
Maximum Cutting CapacityMild Steel 1", SS 5/8", Aluminum 1/2", Brass 5/16", Copper 5/16"
Y Axis Travel81"
Z-Axis Travel6"
Positioning Accuracy+/- .001
Repetition Accuracy+/- .0006
Machine Dimensions489" x 223" x 91"H
Machine Weight40,000 lbs.
