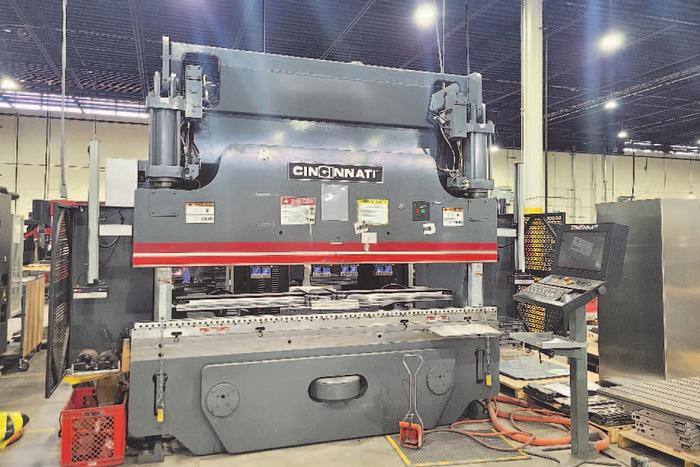

2018 - 90 Ton Cincinnati 90PF-8 Hydraulic CNC Press Brake
2018 - 90 Ton Cincinnati 90PF-8 Hydraulic CNC Press Brake
Location:Canada
orCall (714) 545-0940
Equipped With
Equipped with:
Cincinnati PC Control
5 Axis Back Gauge
CNC Crowning
Robot Interface
Laser Safe Light Safety
Wilson Hydraulic Clamping (Upper/Lower)
Foot Pedal
Specifications
| Manufacturer | Cincinnati |
| Model | 90PF-8 |
| Year | 2018 |
| Condition | Used |
| Stock Number | 12886 |
| Capacity | 90 Tons |
| Overall bending length | 10' |
| Distance Between Housings | 8.6' |
| Stroke | 8" (6" Extended) |
| Open Height | 15" |
| Closed Height | 7" |
| Approach Speed | 260 IPM |
| Variable Forming Speed | 1 - 80 IPM |
| Variable Return Speed | 1 - 280 IPM |
| Ram Repeatability | +/- .0004" |
| Main Motor | 15 HP |
| Electrical | 460/3/60 |
| Weight (Approx) | 15,800 lbs. |
