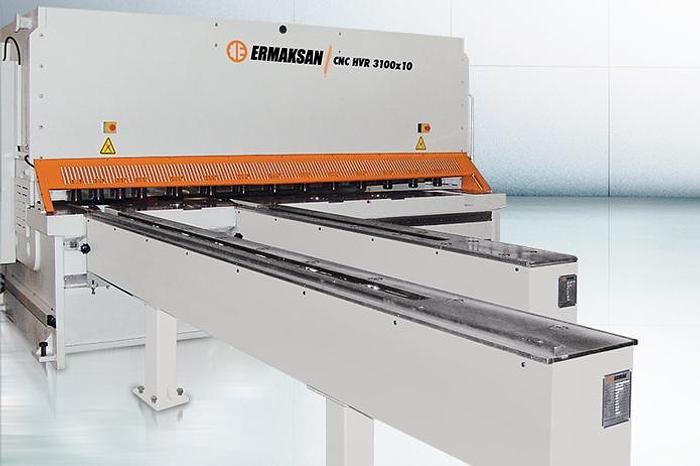

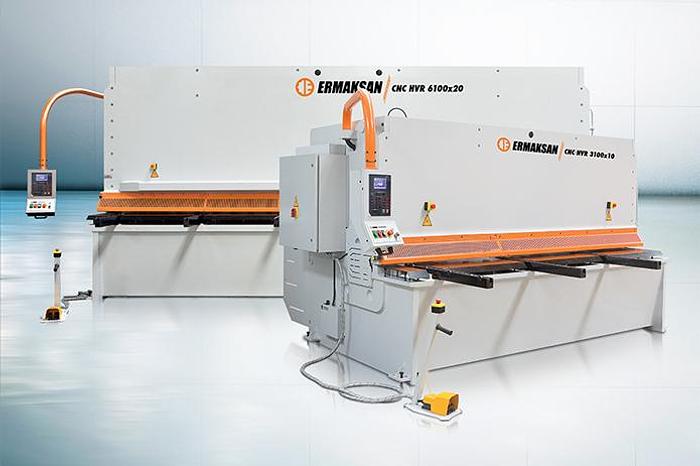

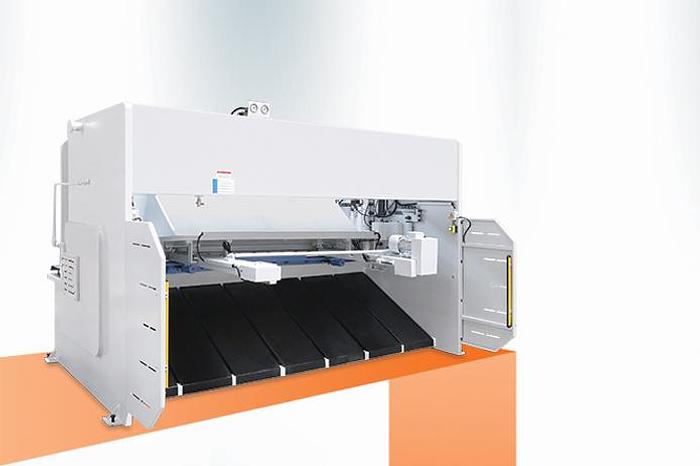

(NEW) 3/8" x 13' Ermaksan HVR 3100-10 Hydraulic Variable Rake Shear

(NEW) 3/8" x 13' Ermaksan HVR 3100-10 Hydraulic Variable Rake Shear

Location:Turkey

orCall (714) 545-0940

Equipped With

Equipped With:

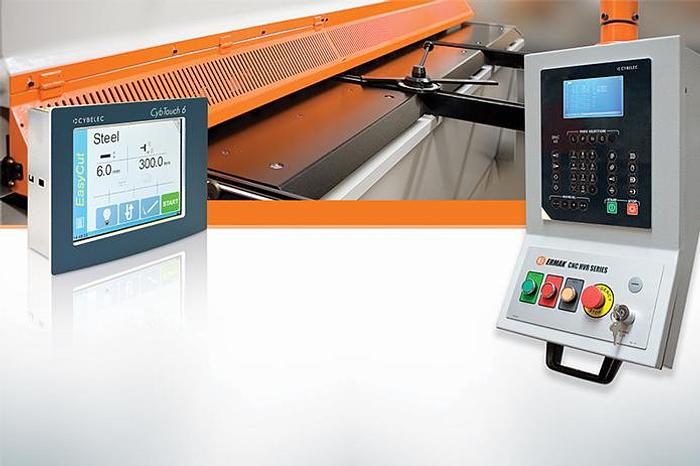

Ermaksan Touch Screen Controller

Automatic Blade Gap Adjustment

Safety Light Curtain

39" Squaring Arm

(2) Support Arms Foot Pedal


Specifications

ManufacturerErmaksan
ModelHVR 3100-10
ConditionUsed
Stock NumberHRR 3100-10
Overall Cutting Length161.5"
Maximum Cutting Capacity3/8" Mild Steel; 1/4" Stainless Steel
Speed12-22 SPM

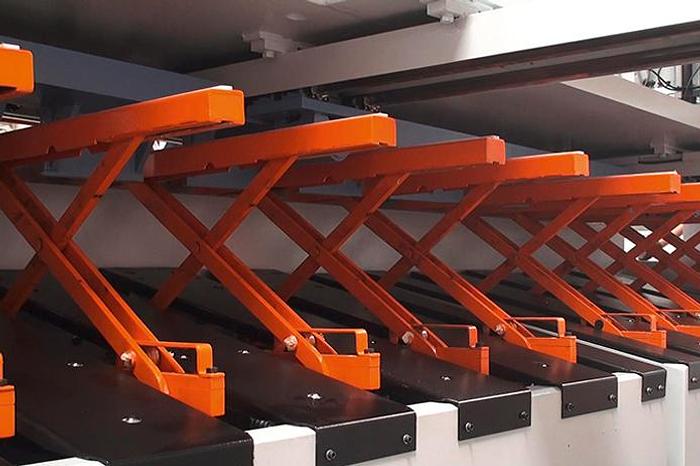

Number of Hold Downs14
Holddown TypeHydraulic
Cutting Angle0.02 - 2 Degrees
Blade Gap Adjustment0.02 - 0.5"
Throat Depth13.8"
Pressure26.4 Tons
Back Gauge Range39.37"
Back Gauge Speed4.33 IPS
Main Motor30 HP
Oil Capacity68.7 Gallons
Dimensions240" x 90" x 97"H
Dimensions w/Squaring & Support Arms240" x 125" x 97"H
Weight33,300 lbs.
