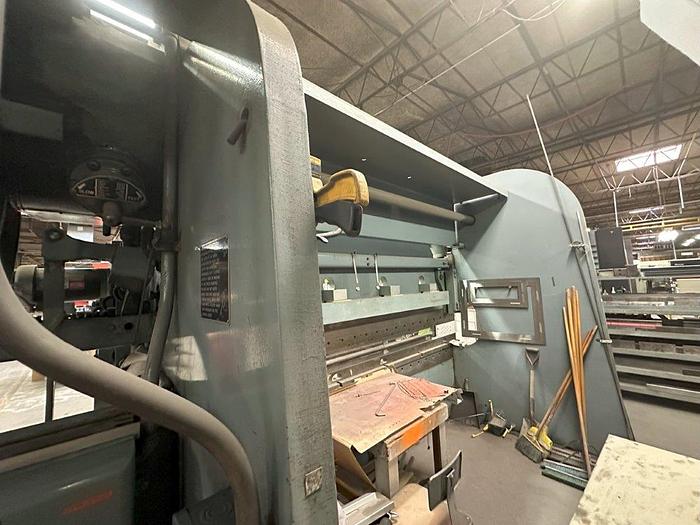

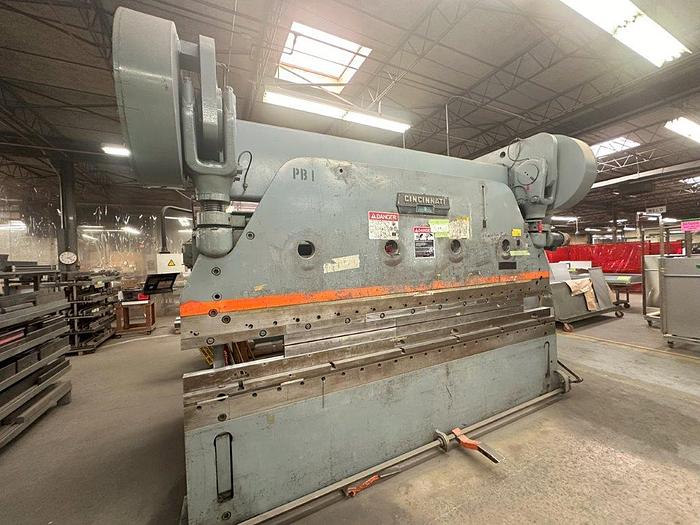

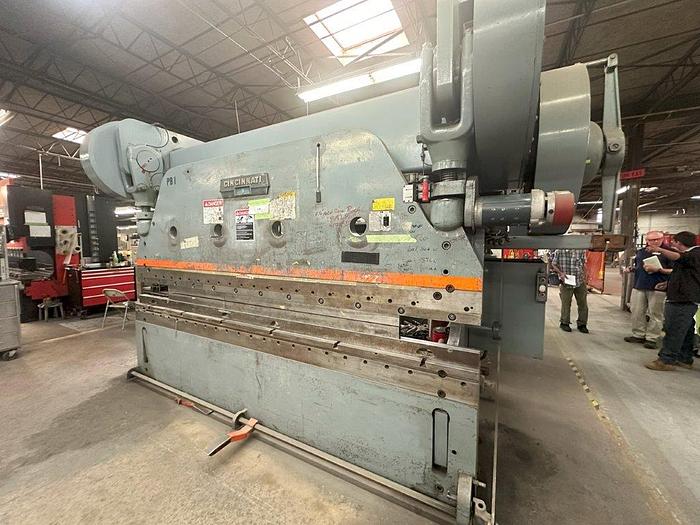

225 Ton x 12' Cincinnati Series 9 Mechanical Press Brake
225 Ton x 12' Cincinnati Series 9 Mechanical Press Brake
Location:Colorado
orCall (714) 545-0940
Equipped With
Equipped with:
Foot Pedal
Die Rail
Specifications
| Manufacturer | Cincinnati |
| Model | Series 9 |
| Year | 1970 |
| Condition | Used |
| Stock Number | 13012 |
| Capacity | 225 Ton (at bottom of stroke) |
| Overall Bending Length | 144" |
| Distance Between Housings | 126" |
| Throat | 8" |
| Stroke | 3" |
| Open Height | 15" |
| Closed Height | 12" |
| Ram Adjustment | 5" |
| Main Motor | 10 HP |
| Machine Dimensions | 13' x 7' x 10'H |
| Weight (approx) | 24,000 lbs. |
