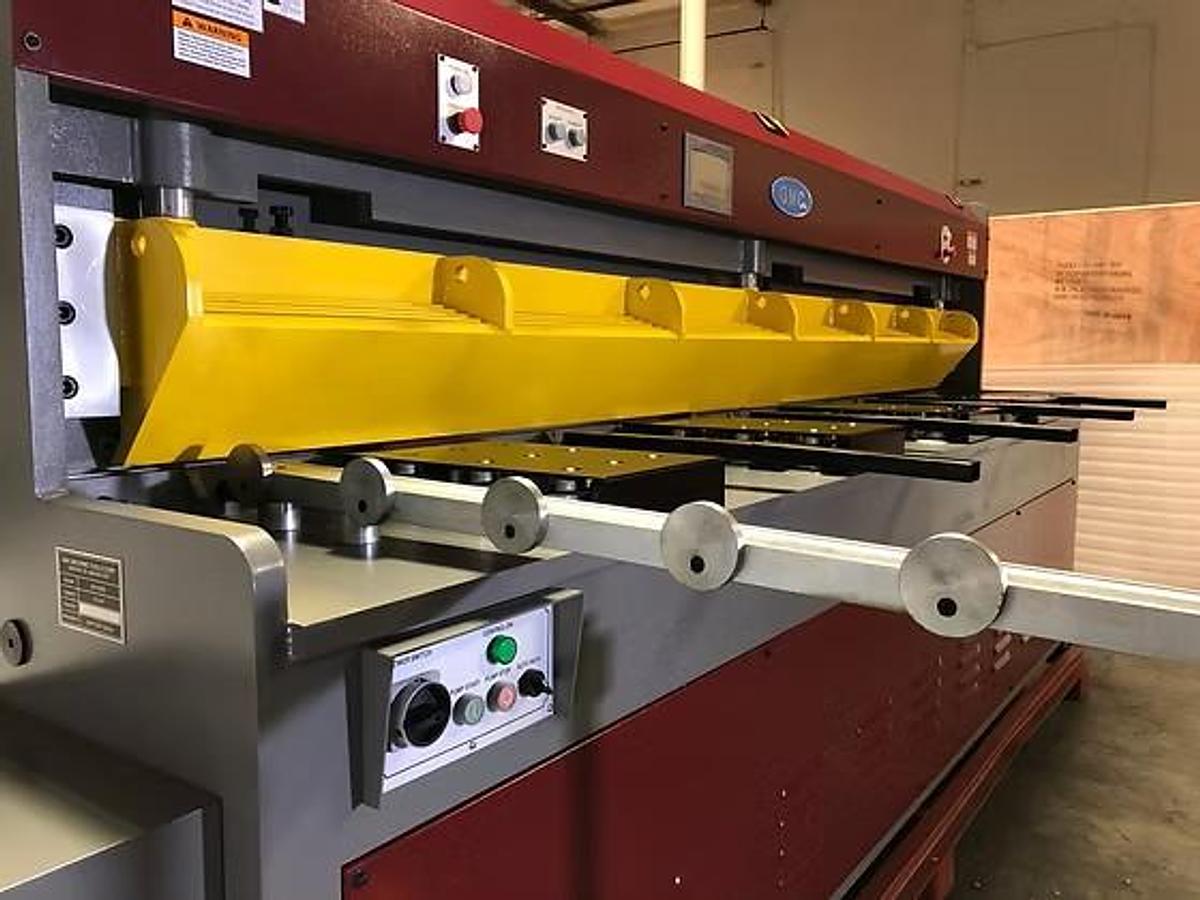

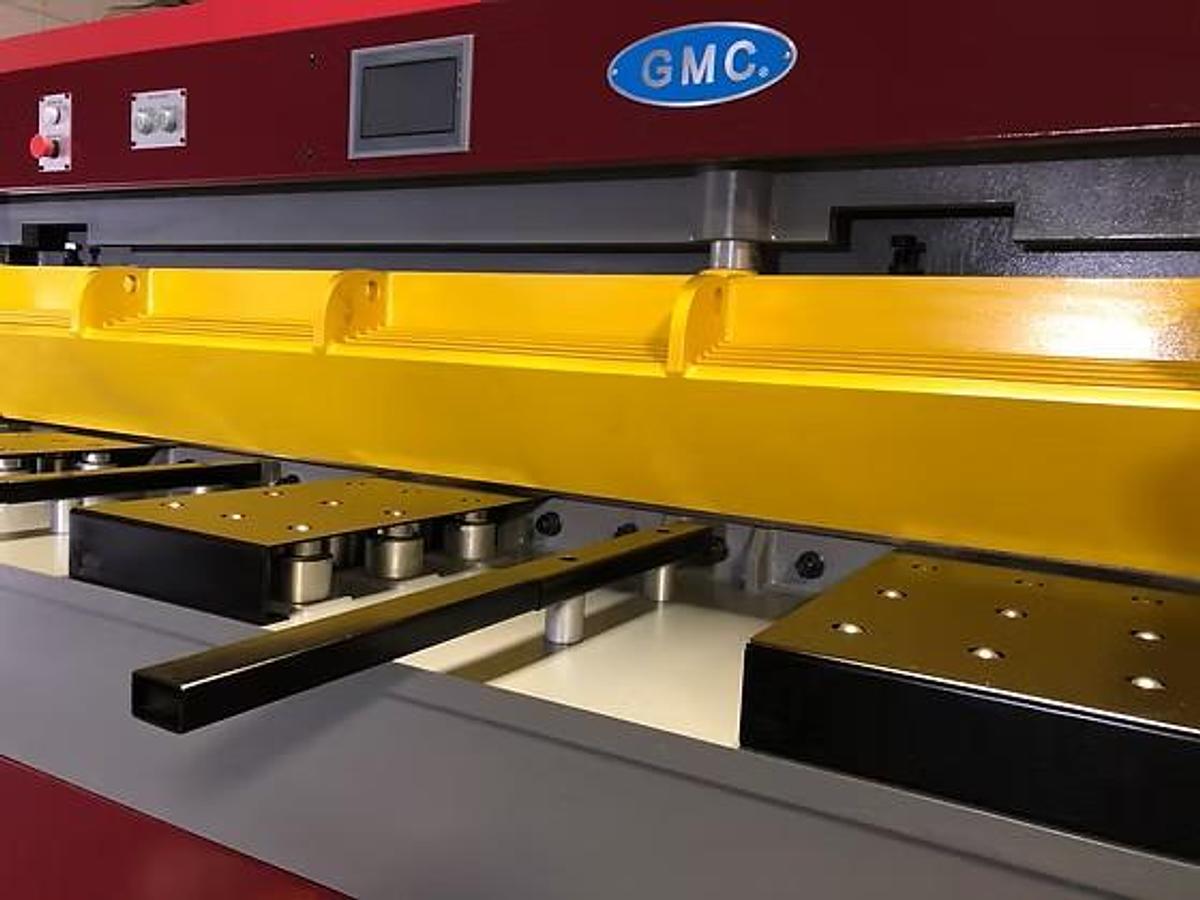

1/4" x 10' GMC HS-1025E Hydraulic Shear w/Electric Backgauge

Standard Features:

• ISO 9001 certified
• Taiwan machines
• comes with go-to NC power back gauge with touch screen
• Quick Change Blade Gap Adjustment (BGA), with gap dial
• CE standard “OMERO” electric control system
• Meet OSHA safety standard code
• Shadow line for accurate straight cutting
• Adjustable cutting length and stroke
• Ball transfer plates on worktable for easy loading workpiece
• Well balanced and sturdy all steel machine frame
• German made Hydraulic logic system centrally located and quiet
• Hydraulic hold-downs with anti-mar neoprene
• Shear blades are high grade carbon/chrome alloy steel and hardened
• to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
• Full length viewable safety finger guard to protect operator from cutting hazard
• Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal
• Hydraulic, electrical overload protection
• Compact operator control panel
• All motors are overload protected & low voltage control system
• Jog or continuous auto cycle cutting operation modes
• One year industrial warranty for parts

Standard Equipment:

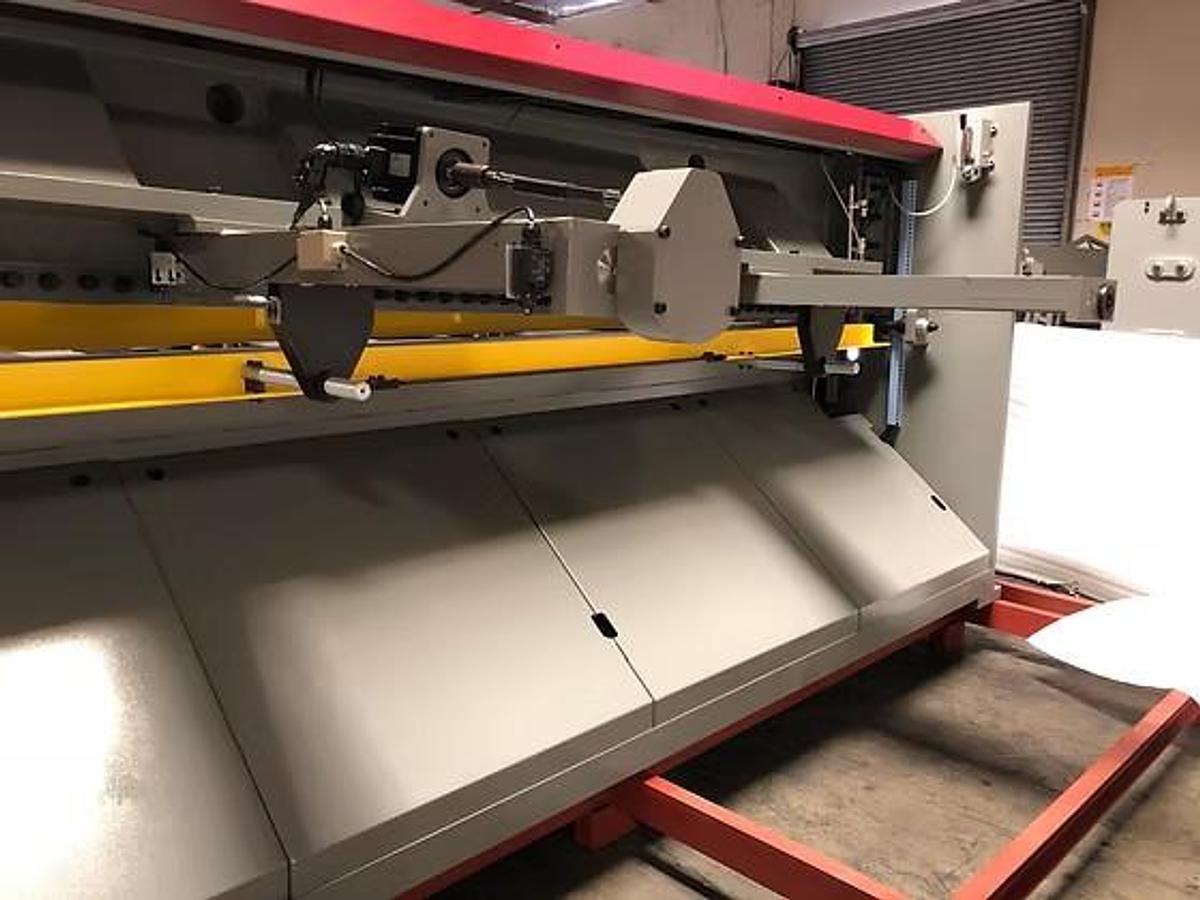

• 36” go to NC back gauge w/ touch screen

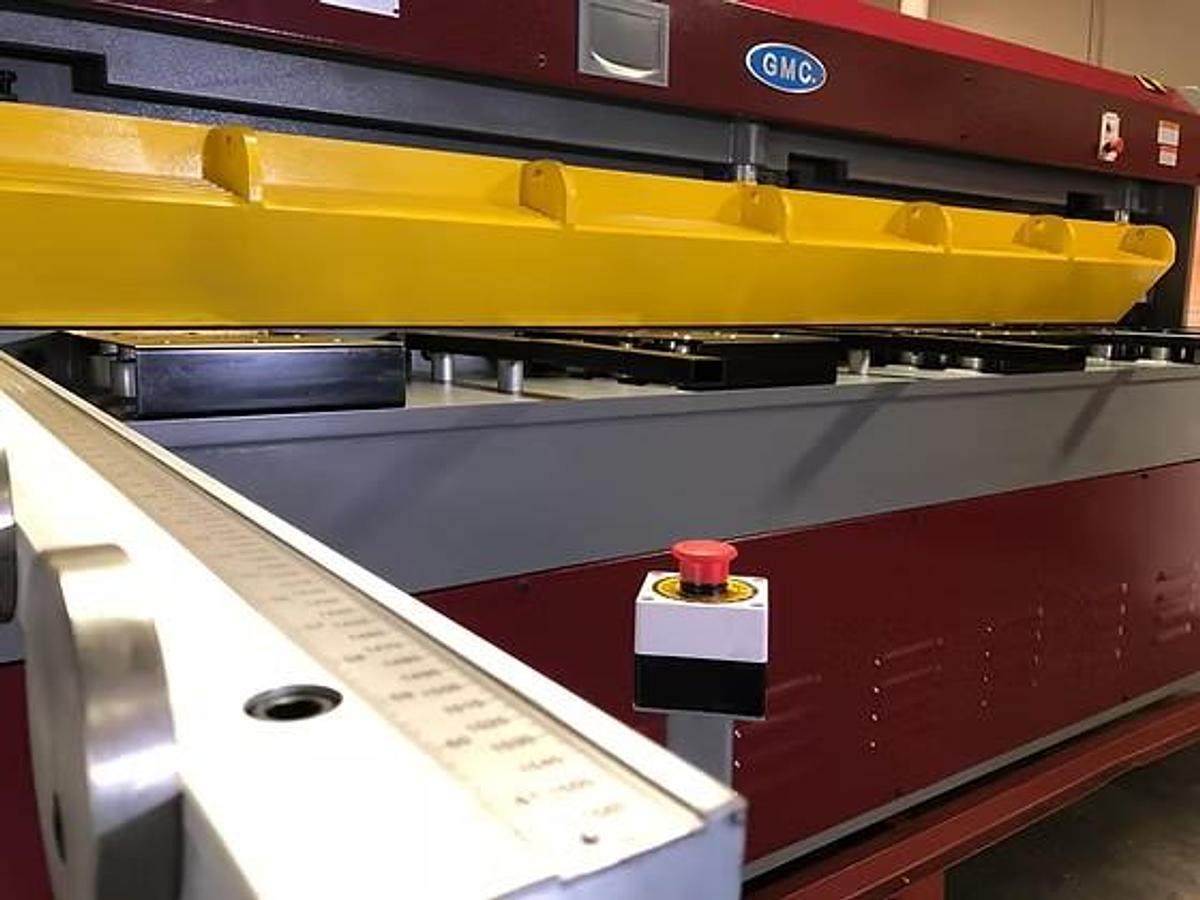

• 1 each 60” squaring arm with inlaid inch/metric dual scale
• Quick change blade gap adjustment (BGA) with gap dial
• Shadow line for accurate straight cutting
• Material support and drop back chuter
• Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
• 4 each 24” front support arms
• Hydraulic hold-downs with anti-mar neoprene
• Full length viewable finger guard
• Removable safety foot pedal
