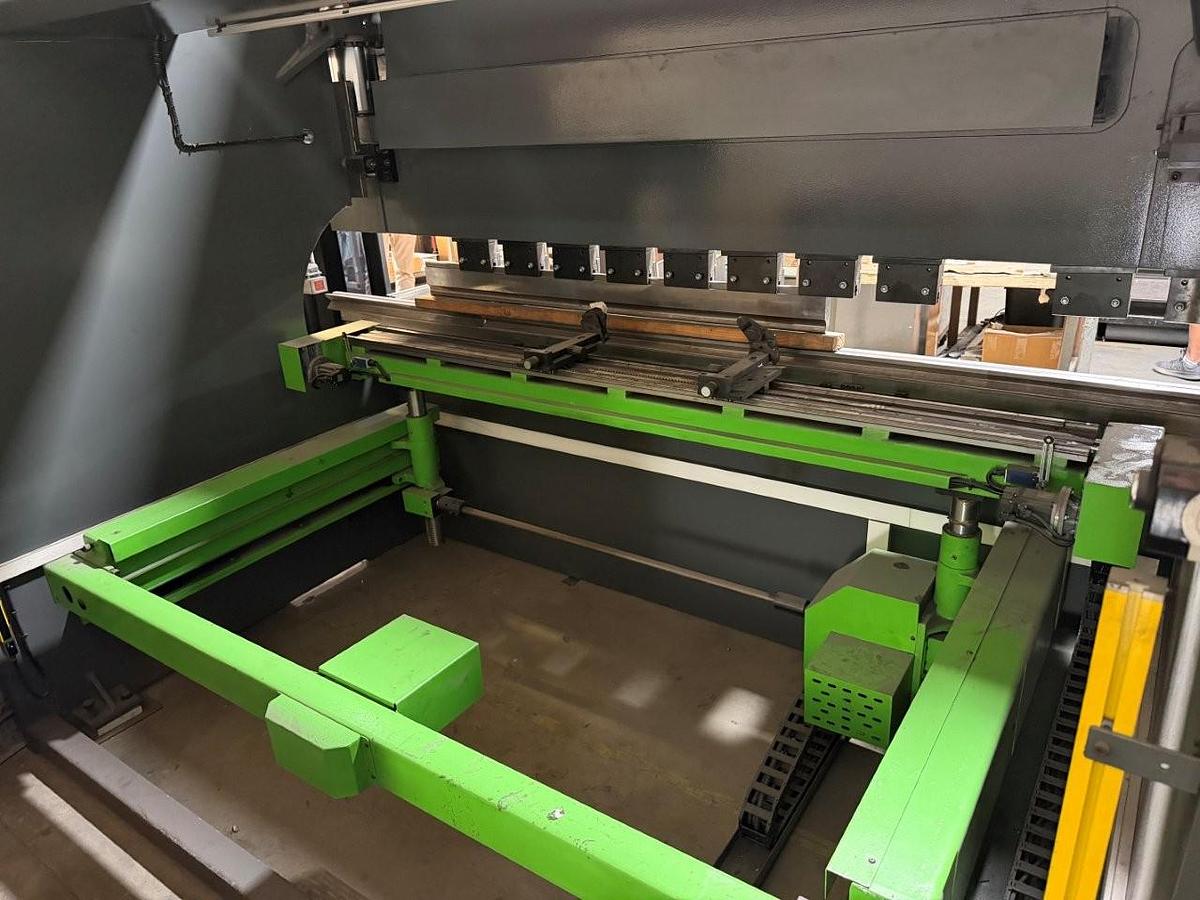

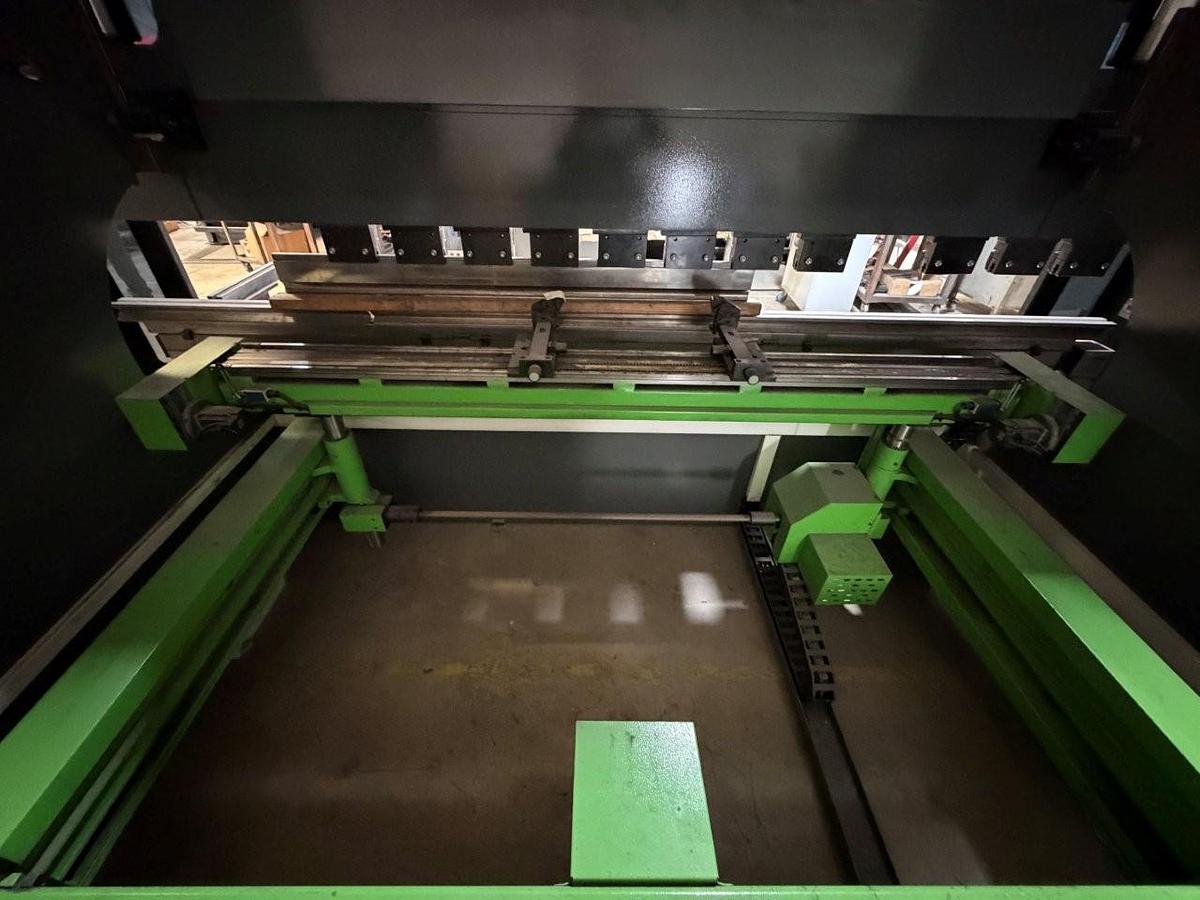

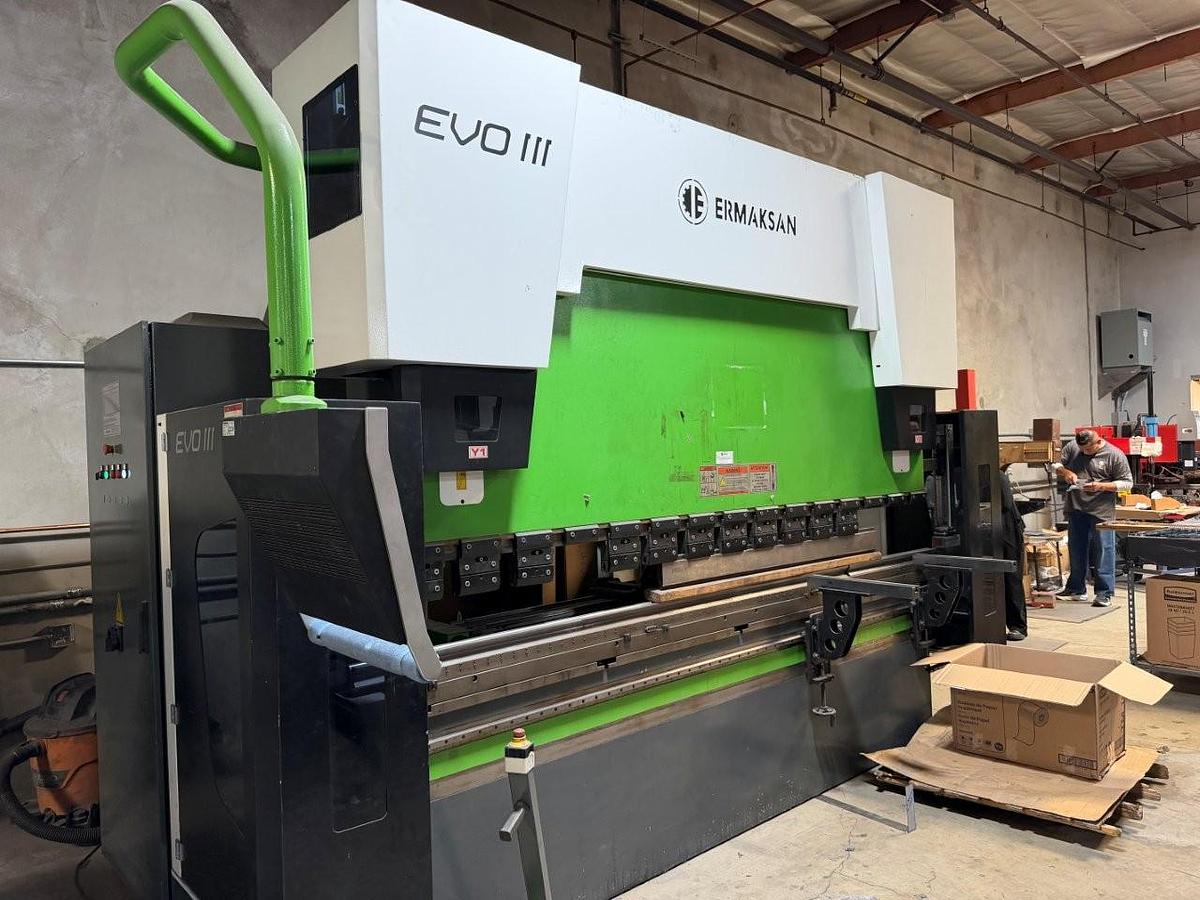

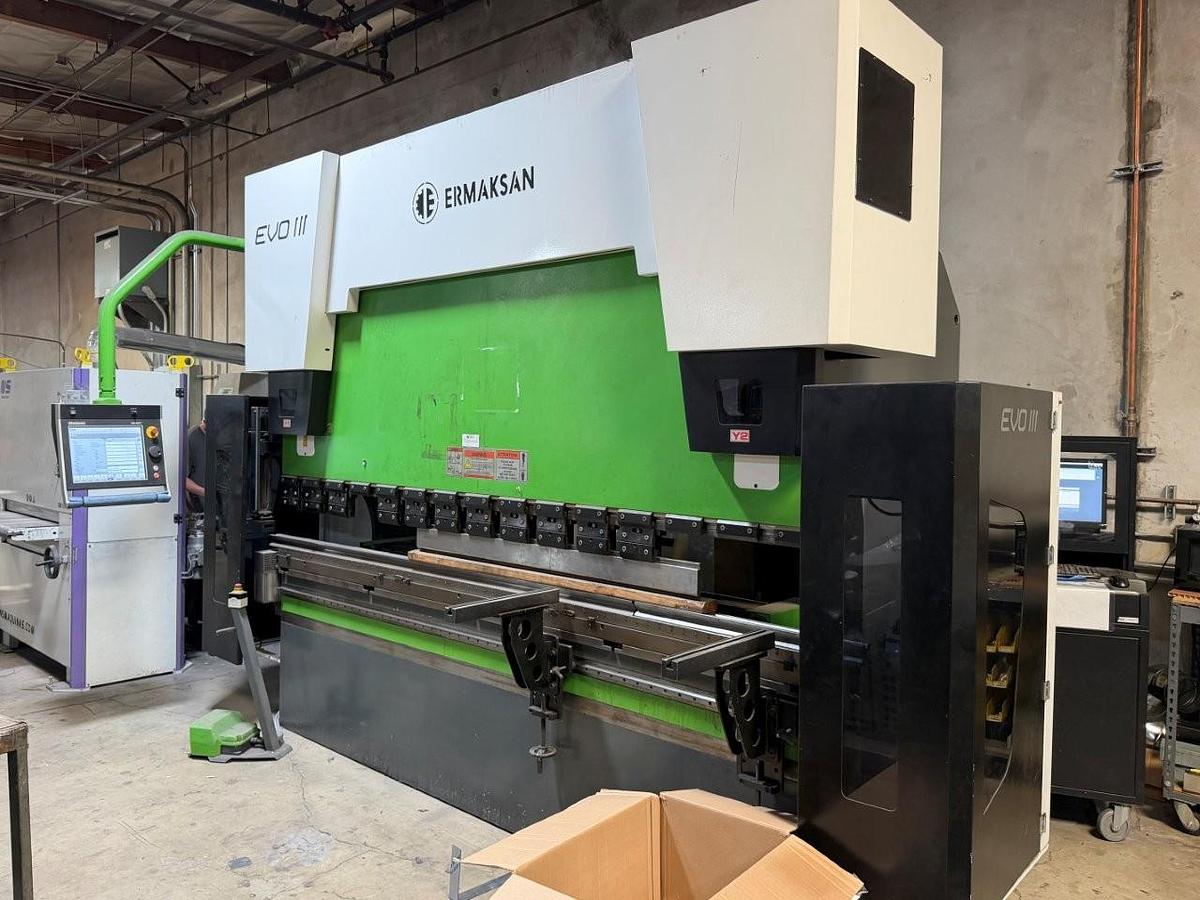

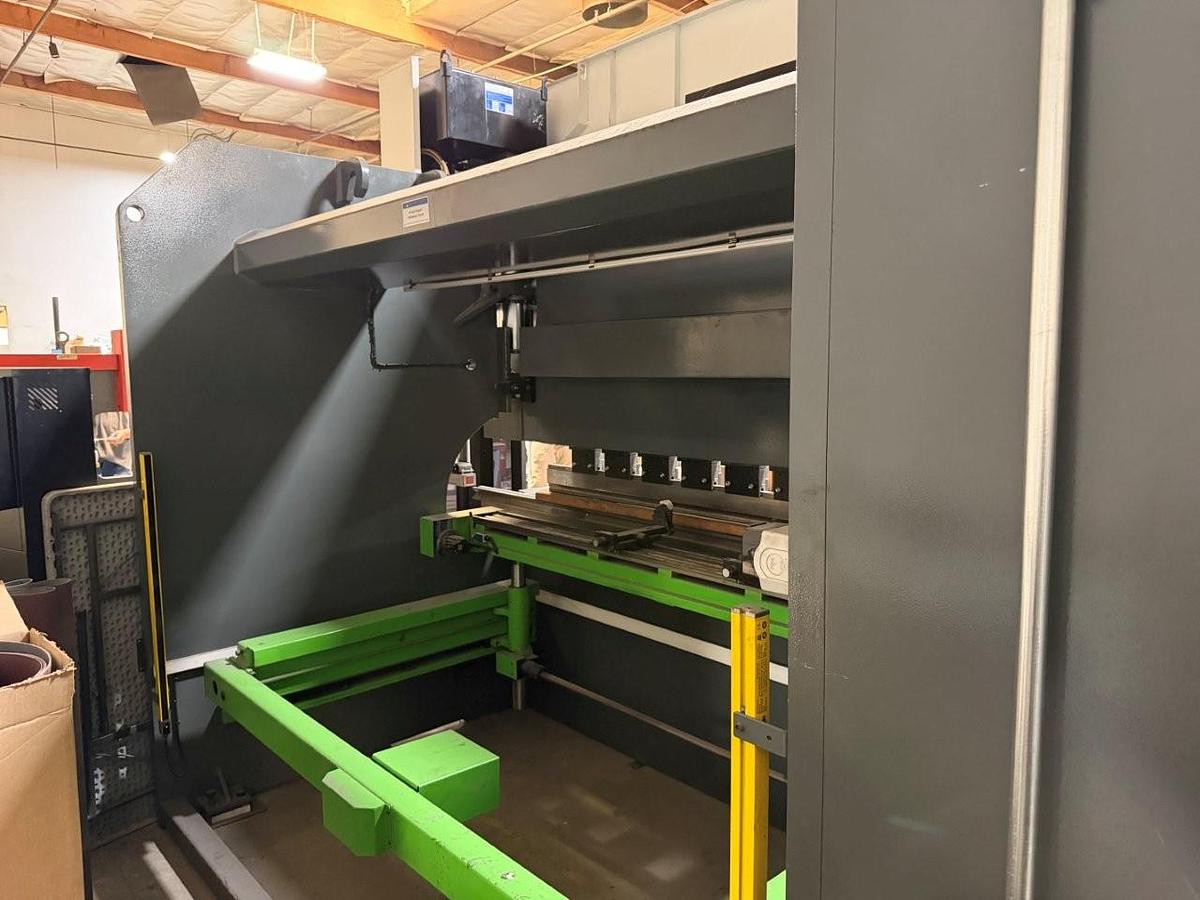

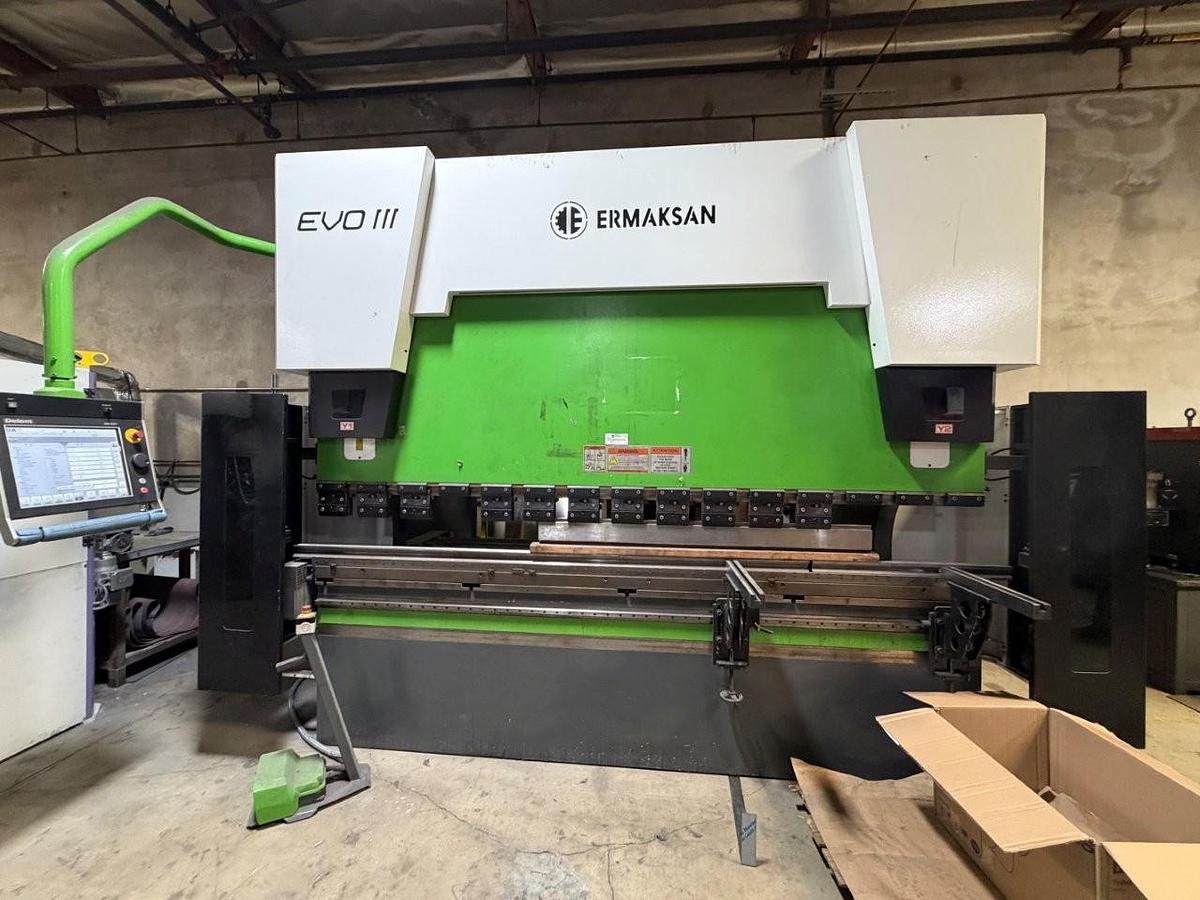

2019 - 149 Ton x 10.17' Ermak EVO-3 HYBRID CNC Press Brake

Equipped With:

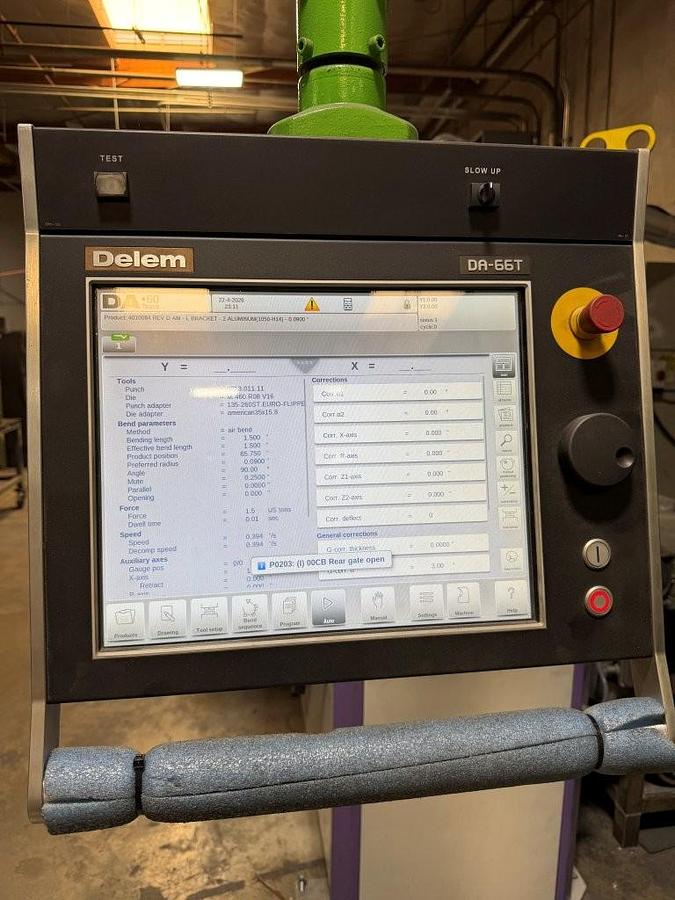

Delem 66T Control

Y1,Y2,X,R,Z1,Z2 CNC Axes

CNC Crowning

(2) Support Arms

Foot Pedal

Misc. Punch Holders

Misc. Tooling

The 2019 Ermak EVO-3 HYBRID CNC Press Brake, model EVO 3100-137, is a well-maintained piece of industrial equipment available in the used market. With a capacity of 149 tons and an overall bending length of 122 inches, this machine is suitable for a variety of metalworking tasks. The press brake features a robust Delem 66T Control and multiple CNC axes including Y1, Y2, X, R, Z1, and Z2, ensuring precise operations. Key features include CNC crowning for improved accuracy, two support arms, and a foot pedal for ease of use. The machine comes with miscellaneous punch holders and tooling, providing flexibility and saving you the hassle of purchasing additional accessories. The press brake offers efficient speeds, with a Y return speed of 6.3 inches per second and an X axis speed of 19.69 inches per second, ensuring quick and efficient production runs. The unit’s structure supports a distance of 102.36 inches between columns, a stroke of 10.83 inches, and a daylight of 21.65 inches, providing ample space for various tasks. Dimensions are approximately 167.32 x 80.71 x 110.24 inches, and it weighs 18,047 lbs. It has a throat depth of 16.14 inches and an R axis travel of 9.84 inches, with an oil capacity of 14.5 US gallons. This Ermak press brake is a reliable and versatile machine ready to meet demanding production requirements.
